Carnarvon Tracking Station Photographs
by Hamish Lindsay 1963-1966.



The Gemini photos were taken in 1965, with the Apollo photos taken
before March 1966 when Hamish left in preparation for Honeysuckle Creek.
They are a wonderful snapshot of the range of operations at Carnarvon.

Some of these photos may appear more than once in the Carnarvon section.

When this page was started in 2012, all the images had been scanned by Hamish Lindsay from his prints.

Where possible, I am progressively replacing these with new high resolution scans from Hamish’s medium format (120) negatives.
So some of these are the original scans, and some have been updated. – Colin.

Carnarvon

1. The original road sign at the entrance to the tracking station with one of the Commer buses used to transport staff to and from work.

Updated scan of 120 negative by Colin Mackellar, Feb 2024.


Carnarvon

2. John Nugent at the Gemini 1218 computer with Barbara King at the keyboard.

Update: Feb 2024 scan of 120 negative.


Carnarvon

3. Gemini Acquisition antennas. Updated scan.
Note the finishing touches being made to the outside of the Apollo extension at the left end of the building.

Updated scan from the 120 negative by Colin Mackellar.


Carnarvon

4. Close up of the Gemini Acquisition antennas.


Carnarvon

5. Gemini Acquisition Aid towers.
Updated scan from the 120 negative by Colin Mackellar.


Carnarvon

6. The Acquisition Aid system, the first system to lock onto the spacecraft. The FPQ6 radar slaved to it to initially to locate the spacecraft. It also received the telemetry and voice signals.

Supervisor Ed Goldsmith in the centre, with Alec Stevenson behind, and Clive Cross in front.

Large, Larger.


Carnarvon

7. View from behind the T&C building with the Acquisition Aid antennas in the foreground.

From the Acquisition Aid boresight tower.

In this scan, note that the ground at left has been cleared for the Apollo extension, and that work on the 9 metre USB Apollo antenna has not yet started.

See also photo 34, where the cleared area for the Apollo extension is obvious.

2022 updated scan: Colin Mackellar.


Carnarvon

8. The power house with the Gemini Command and Voice transmitters site beyond to the left, and the Range and Range Rate site in the distance.


Carnarvon from the air

8b. Aerial view – Apollo configuration. Hamish writes:

“On the left are the two tropospheric scatter dish antennas for a link to Geraldton, introduced when all the land lines out of Carnarvon were lost to a lightning strike early in the Gemini Program. Next is the 9-metre USB Apollo antenna.

The big building is the T & C (Telemetry and Control) building, with the Apollo extensions visible nearest the camera with its battery of airconditioning units needed to compete with the heat of the surrounding desert.

At the top right corner of the T&C building are the two Gemini Acquisition Aid antennas, while the old Verlort radar from Muchea with its vans and small concrete tower is visible in the top right of the picture.”

The powerhouse and FPQ-6 radar were established in separate locations.

At its peak Carnarvon (CRO) was the largest tracking station outside the USA.”

How was it taken? Hamish writes, “I was flying in a light aircraft without the door on (the pilot pulled fencing wire out of the hinges to remove the door!), and when he banked to turn all my gear would slide towards the open door.”


Carnarvon

8c. Aerial view – Apollo configuration.

Visible in this photo is the T&C Building – the new Apollo extension is at the top of the picture. To the right is the 9 metre USB antenna, and to right of it are the troppo-scatter antennae for communications to Geraldton.

2020 scan: Colin Mackellar.



Carnarvon

9. The Gemini operations room: Gemini engineering console on the left, Capcom console in the centre and the Agena engineering console on the right, with visiting NASA engineers.


Carnarvon

10. Gemini 4 Flight Control team.

Back row from left: M&O Dick Simons, AWA Company Manager Fred Mitchell, Station Director Lewis Wainwright, and Astronaut Dave Scott.

Front Row: Dr Bill Walsh (RAAF), Harry Smith, Dr Michael Murray-Alston (RAAF), John Ferry, Ed Fendell (Capcom), Joe Fuller, Dr Dick Pollard (NASA).

Gemini 4 flew June 3-7 1965.
Updated scan, 2023, from the medium format negative.


Carnarvon

11. Station engineer Monte Sala with the fountain he designed for AWA.


Carnarvon

12. The WRE High Altitude Density (HAD) rocket launch site.


Carnarvon

13. View of the HAD rocket from inside the firing post.


Carnarvon

14. John Ferry, a Gemini flight control team member at the Capcom console during downtime when the spacecraft was out of range of the station.

Updated scan from the 120 negative by Colin Mackellar, Nov 2023.


Carnarvon

14a. John Ferry at the Capcom console. No flash used.

Scan from the 120 negative by Colin Mackellar, Nov 2023.


Carnarvon

15. M&O Supervisor Dick Simons at the Gemini operations console. Behind are John Fletcher (left) and Dave Brooks.


Carnarvon

16. FPQ6 radar supervising engineer Len Algate.


Carnarvon

17. Crane lowering the FPQ6 dish onto the pedestal.


Carnarvon

18. Another view of the crane lowering the FPQ6 dish onto the pedestal. Scan: Colin Mackellar.


Carnarvon

19. The FPQ6 radar 9 metre antenna and pedestal, with Don Blackman on the platform to give scale to the structure.


Carnarvon

20. The FPQ6 radar antenna mount.


Carnarvon

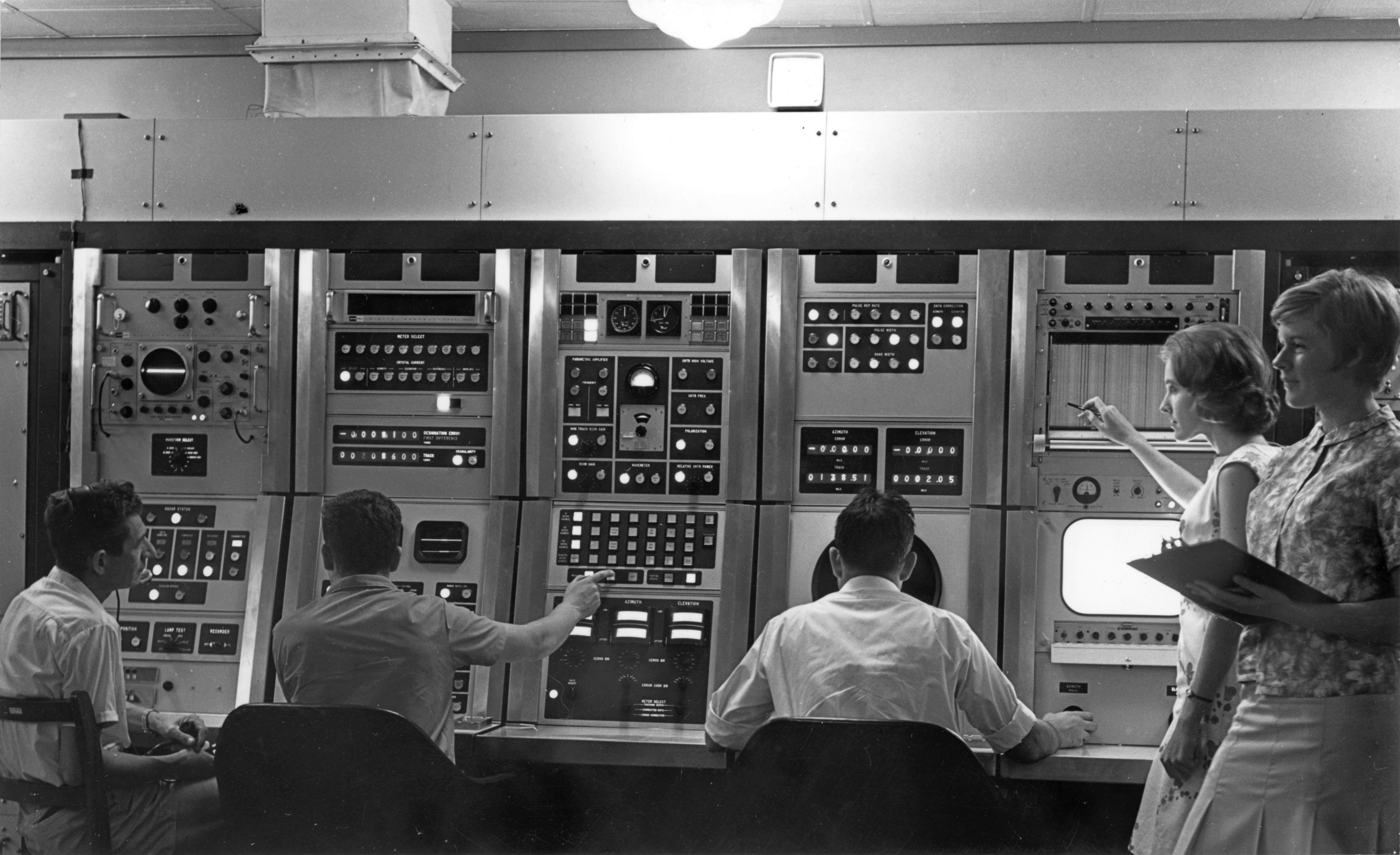

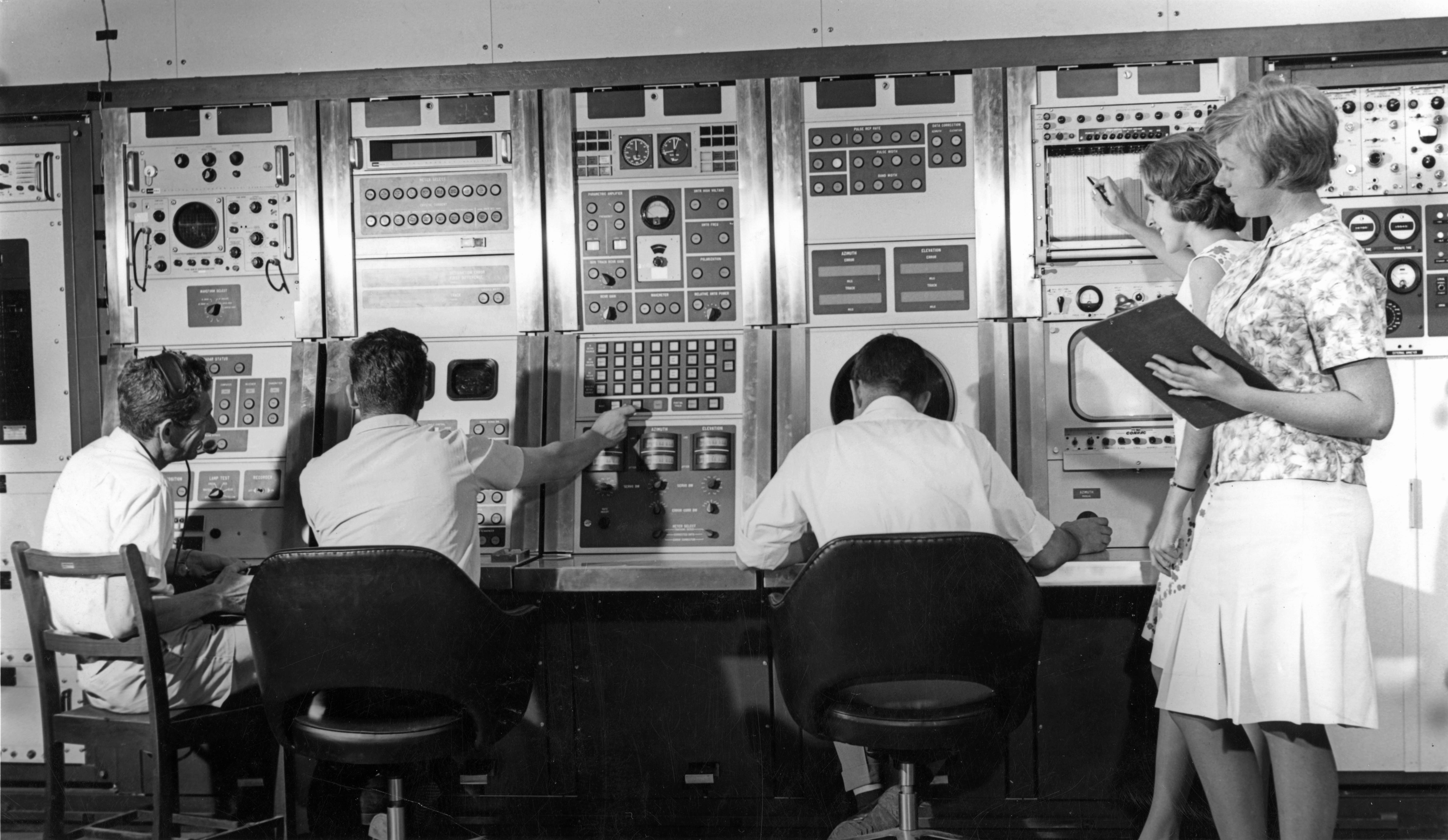

21. The FPQ6 radar operations console.
From left: Ron Burgess, George Allan, George Gerschwitz, Len Algate.


Carnarvon

22. George Allan at the FPQ6 console.


Carnarvon

23. Close up of the FPQ6 antenna with technician Don Blackman in the window of one of the On Mount Service Shelters.


Carnarvon

24. Operators Helen Smith and Joy King with technician Kon Tsiaprakas in the Range and Range Rate equipment trailer.

Large, Larger.


Carnarvon

25. The dual S-Band dish antennas at the Range and Range rate site.


Carnarvon

26. Astronaut Wally Schirra setting his hands in concrete.

Unknown photographer.

Negative preserved by Hamish Lindsay. Scan: Colin Mackellar.


Carnarvon

27. Astronaut Wally Schirra about to plant his hands in wet concrete. Watching from behind are Wilson Tuckey and AWA Company Manager Fred Mitchell.

Updated scan: Colin Mackellar.


Carnarvon

28. Astronaut Wally Schirra about to wash his hands after planting them in concrete, assisted by Monte Sala.

Updated scan: Colin Mackellar.


Carnarvon

29. Astronaut Wally Schirra looking at paintings.

Local girls Christine Jones (foreground) and Maureen Tiddums (partially hidden) present two paintings to Wally Schirra, with encouragement from AWA Company Representative Fred Mitchell.

Alan Gilham in the distance at left, watches the proceedings, as does Monte Sala (in dark suit), and Mayor of Carnarvon Wilson Tuckey. Station Director Lewis Wainwright stands at the right.

Photo: Hamish Lindsay. Scan: Colin Mackellar. With thanks to Maureen (Tiddums) Tittum and Alan Gilham for help with identification.

One of the two paintings presented may have been for Frank Borman, who was suffering from a head cold and so did not travel from Perth.

Updated scan: Colin Mackellar.


Carnarvon

30. Astronaut Wally Schirra’s hand imprint in the concrete block.
Behind from left are Fred Mitchell (Company Manager), Wilson Tuckey, and Lewis Wainwright (Station Director).

Updated scan: Colin Mackellar.


Carnarvon

31. NASA installation supervising engineer Victor Schwartz at the fountain, looking at Craig, the photographer’s son, playing in the fountain.

Large, Larger.


Carnarvon

32. Technician Stewart Sands calibrating the medical pen recorder.

Large, Larger.


Carnarvon

33. Called surgeons, the medical team for Gemini IV at their console, from left:
Dr Bill Walsh (RAAF), Dr Dick Pollard (NASA),
Dr Michael Murray-Alston (RAAF).

Large, Larger.


Carnarvon

34. The T&C Building with the foundations for the USB extensions in the foreground. Taken from the WWV tower.

The cleared for the Apollo extension is in the foreground.


Carnarvon

35. Working on the timing VLF antenna.


Carnarvon

36. Technician Leo Overington working on the USB time standard.

Updated scan: Colin Mackellar.


Carnarvon

36a. Another photo of Leo Overington at the USB time standard.

Scan: Colin Mackellar.


Carnarvon

37. A view of the Gemini telemetry area with the Acquisition Aid to the rear. Geoff Hammond in the foreground, with John Nugent (left) and Basil Byrne in the background.


Carnarvon

38. Technician Jack Stewart at the Gemini PCM-1 telemetry control panel.

Updated scan.


Carnarvon

39. Technician Dave Ricketts working on the Gemini telemetry receivers.

Updated scan.


Carnarvon

40. Engineer Trevor Housley at the Gemini Digital Command System (DCS – Mark 2).

This copy preserved by Lewis Wainwright. Scan by Colin Mackellar.


Carnarvon

41. Teletype operator Gloria Klarie (right) sending teletype messages with Communications Supervisor Arch Durie in the background.

Large, Larger.


Carnarvon

41b. Another photo taken at the same time.

John Lambie writes (Feb 2024),

“Gloria Klarie typing, Pam Lewis standing, Arch Durie at his desk.
Gloria was a local Carnarvon girl. Her mother, Olive Dick, managed the Gemini Coffee lounge for us.
Pam Lewis, ex Aust Army, came from Beaudesert in Queensland.
Both girls married Americans and returned to live in the U.S.

Feb 2024 scan of 120 negative by Colin Mackellar.


Carnarvon

42. The crane lowering the USB antenna X axis gear onto the base.

Updated scan.


Carnarvon

44. Crane lowering the USB antenna X axis gear onto base.

Updated scan.


Carnarvon

45. Crane assembling USB antenna dish support framework.


Carnarvon

46. Supervising Engineer Paul Dench (right) talks with Mr Sam Miller, Head of the Radio Construction Company team installing the USB antenna.


Carnarvon

46a. Supervising Engineer Paul Dench (right) talks with Mr Sam Miller, Head of the Radio Construction Company team installing the USB antenna. Scan by Colin Mackellar.


Carnarvon

47. The completed 9 metre USB antenna.

Updated scan.


Carnarvon

47a. The completed 9 metre USB antenna.

Scan: Colin Mackellar.


Carnarvon

48. USB building extension framing.

Updated scan.


Carnarvon

49. The USB building extension plinth floor framing in place.

Updated scan.


Carnarvon

50. Seated at the USB receiver console are Dave Brooks (left) and John Fletcher.

Updated scan.


Carnarvon

51. Technicians Fred Dykstra and Bill Bell operating the Mercury/Gemini Verlort radar.

Updated scan.


Carnarvon

51a. Another photo taken minutes earlier.

Scan: Colin Mackellar.


Carnarvon

52. Technician Hamish Lindsay at the Gemini voice receivers.




–––––
