Honeysuckle Creek

Plan of the Operations Building
during Apollo




First Floor

First Floor

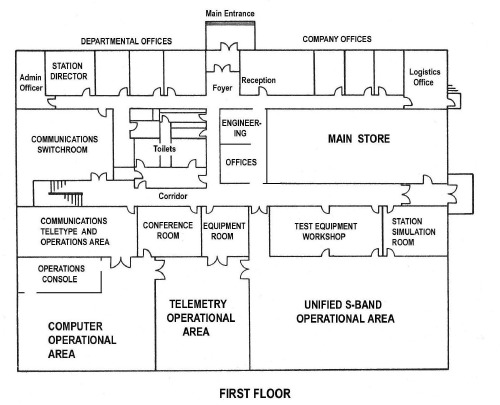

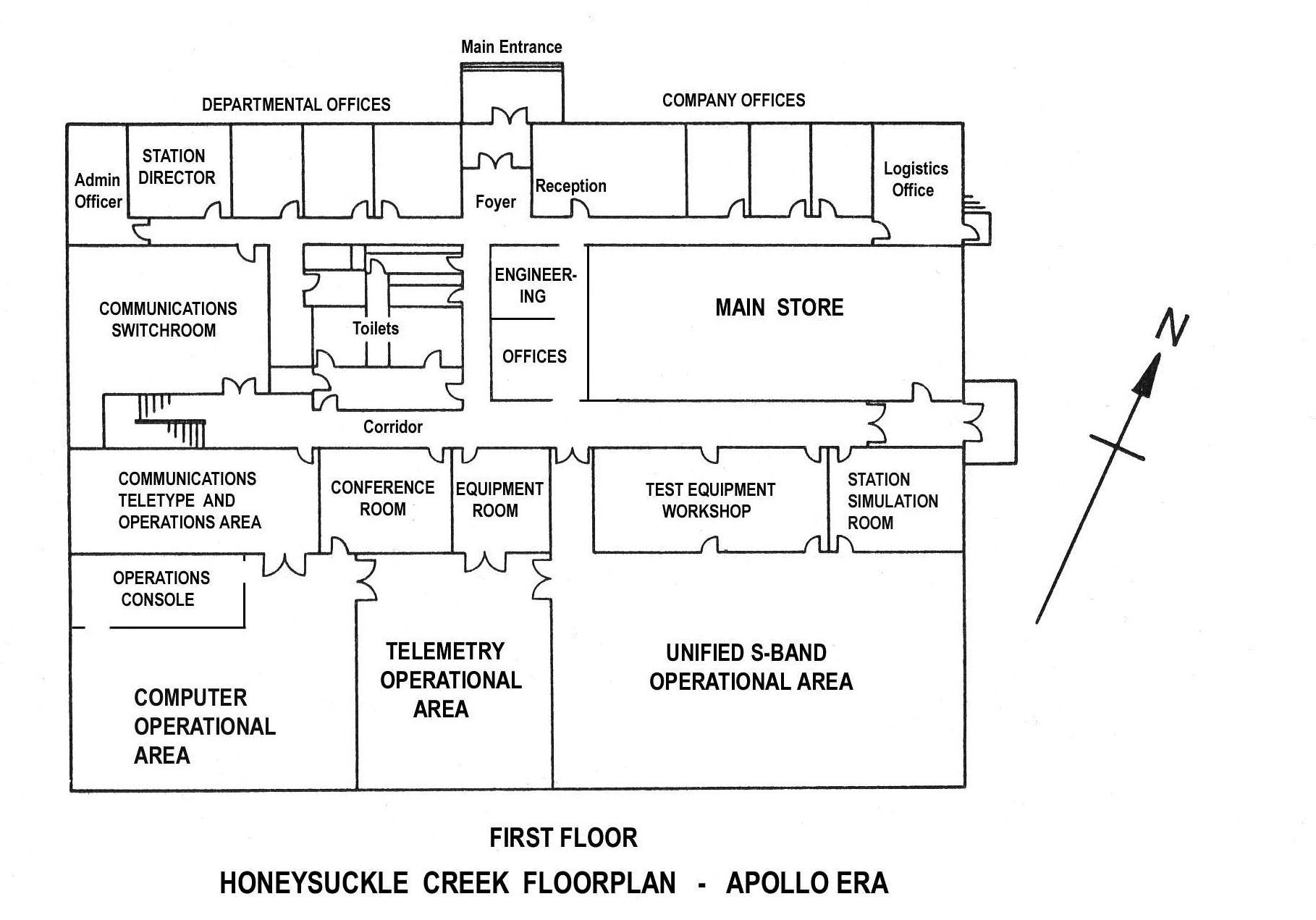

The initial configuration of main floor of the Operations Building.

Drawing modified by Hamish Lindsay.


First Floor

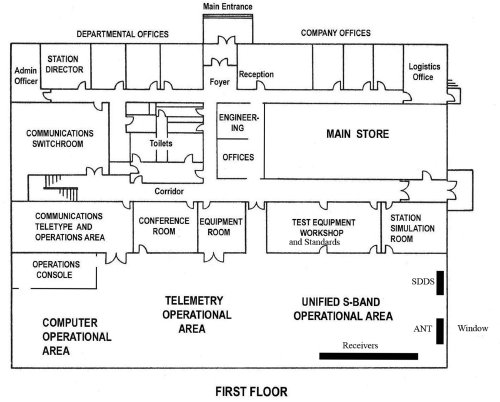

Post-1969 configuration of main floor of the Operations Building.

Drawing modified by Nevil Eyre.

Nevil writes:

“I can understand why you have trouble with the equipment layout, because it was continually changing. Walls were removed or relocated and equipment would be changed after every Apollo mission.

On the floor plan I have shown the location of the SDDS rack, the antenna console and the receiver racks. The wall shown between USB & telemetry was removed before I arrived in 1969, I’m not sure when the wall between telemetry and computers was removed.

The conference room was enlarged and modified several times. All this is enough to confuse anyone, including me after all these years.”


First Floor

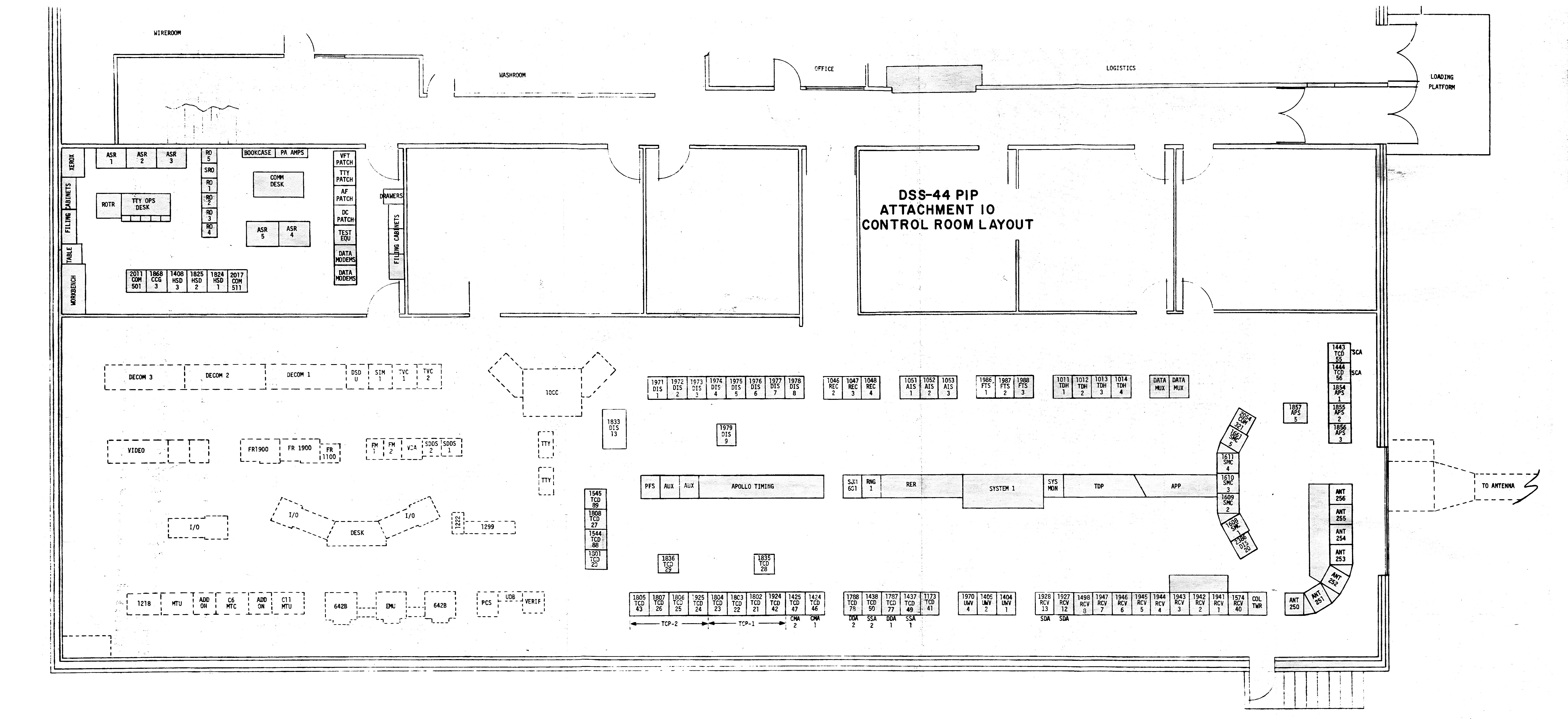

Deep Space era configuration of main floor of the Operations Building.

This scan covers the operations area as it was after Honeysuckle Creek joined the Deep Space Network as DSS44.

From the Tidbinbilla archives. Scan by Glen Nagle.



The Basement

Basement

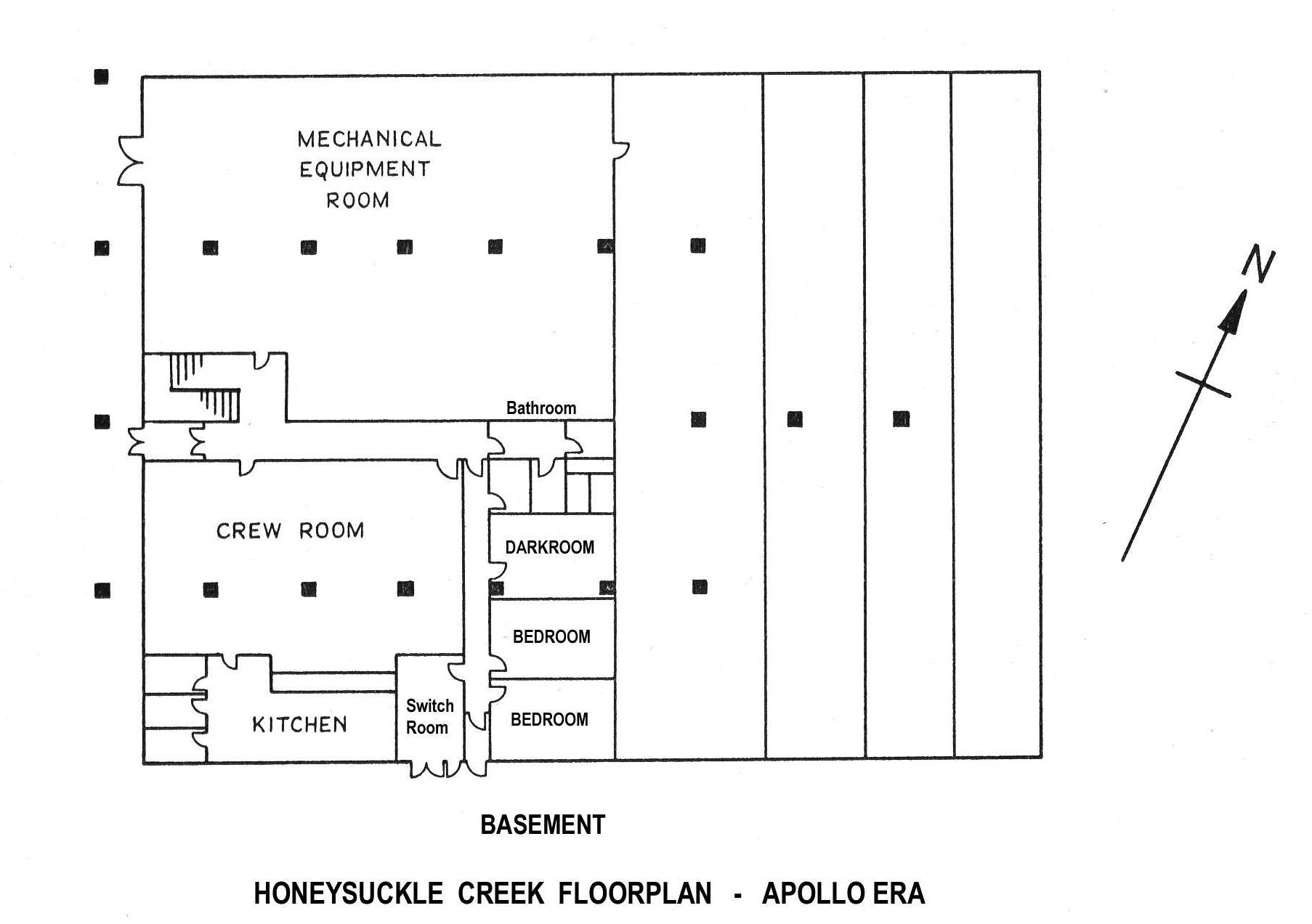

The basement of the Operations Building.

Hamish Lindsay writes,

“The lower floor (more like a basement) was a communications equipment room, storage, bedrooms (one converted into a darkroom for me), bathrooms, canteen and a big lunch room.”
