Cooby Creek – Teardown




Except where noted, these tranparencies of the Teardown, as the Transportable Ground Station equipment was disassembled in preparation for return to the Goddard Space Flight Center, were taken by Neil Sandford.


Cooby Creek

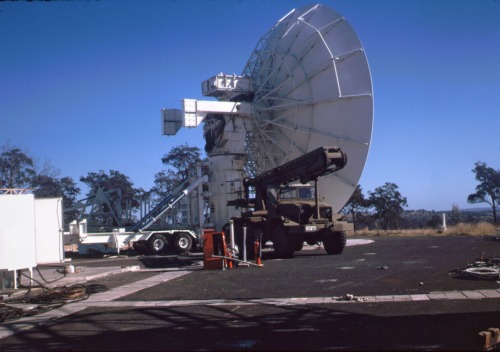

01. The 40 foot antenna is ready for lowering.


Cooby Creek

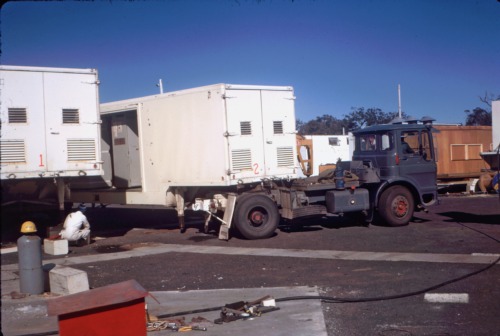

02. Separating 3 OCC Vans.


Cooby Creek

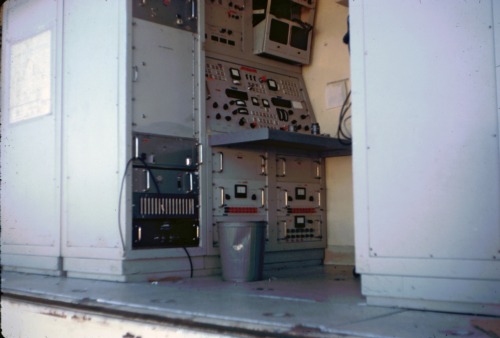

03. Antenna Control Console in Van 1.
(Compare this photo from opening day.)


Cooby Creek

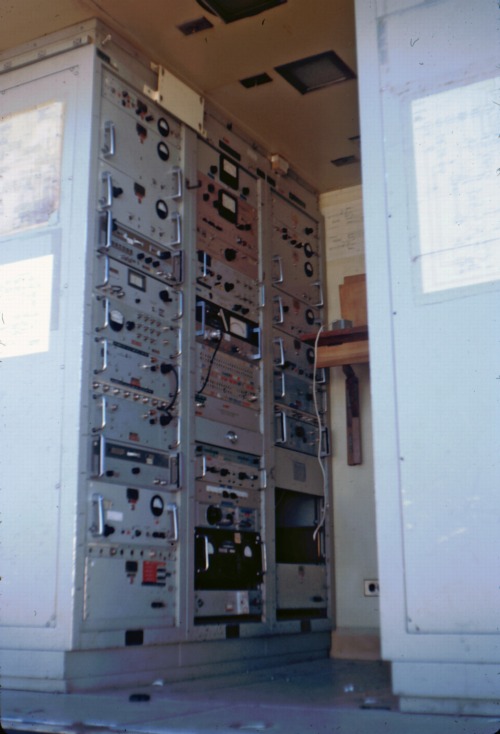

04. Receiver Bay in Van 1.


Cooby Creek

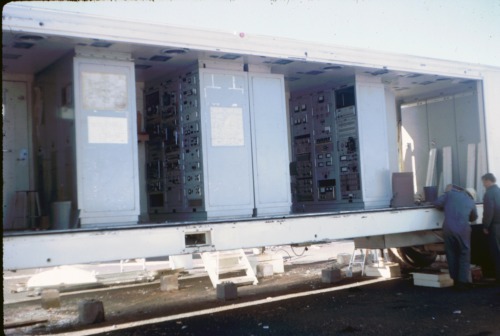

05. Equipment Bays in Van 1.


Cooby Creek

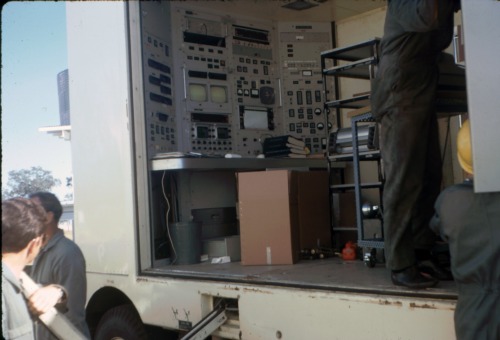

06. Van 2 MCC.


Cooby Creek

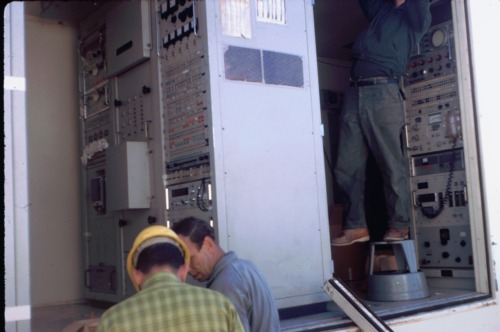

07. Van 2 CTEC (Communications Test Evaluation Console) and Transmitter test rack.


Cooby Creek

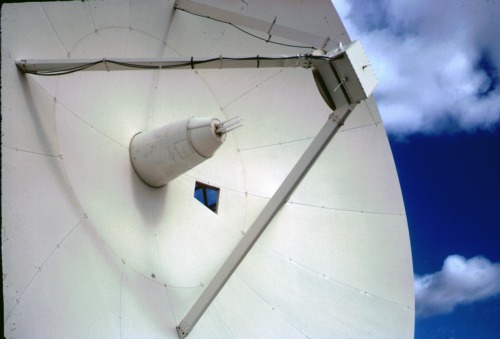

08. 40 foot Antenna Feed & MAVIS.


Cooby Creek

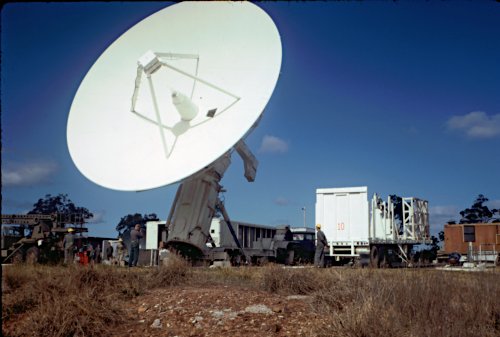

09. The 40 foot Antenna being lowered.


Cooby Creek

10. The 40 foot Antenna being lowered onto the trailer.


Cooby Creek

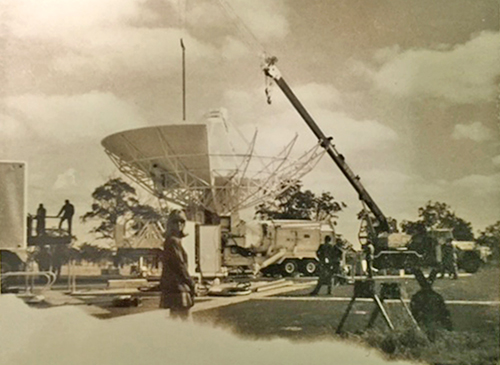

The 40 foot antenna is being lowered.

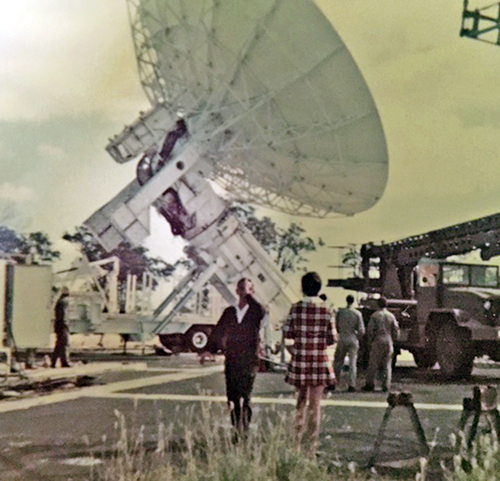

In the foreground, Newman Bell (Stores Manager) and Joy Cameron.
Photo by Veda Finlay.


Cooby Creek

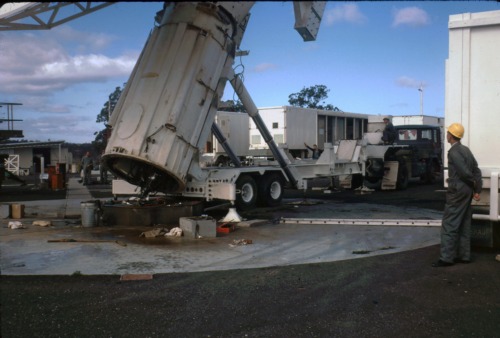

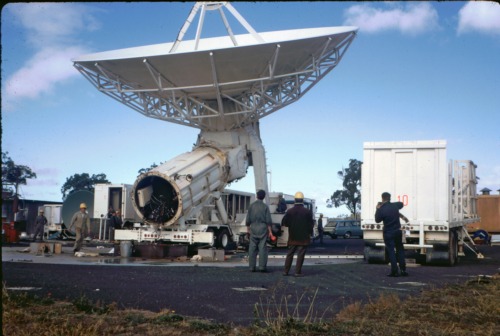

11. The 40 foot Antenna being lowered onto the trailer.


Cooby Creek

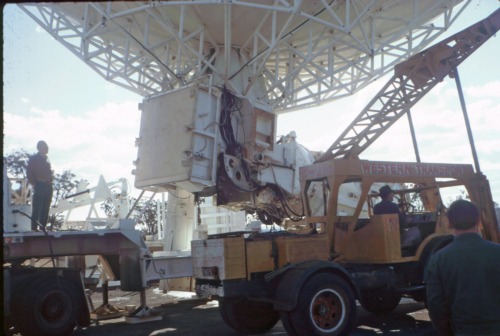

12. The 6GHz FM-SSB Transmitter on the back of the Antenna.


Cooby Creek

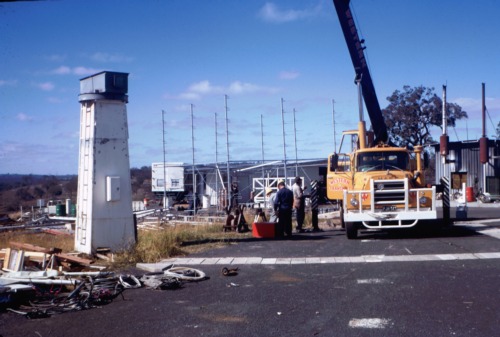

13. Dismantling the VHF TACO Antenna.


Cooby Creek

Removing dish panels.
Photo by Veda Finlay.


Cooby Creek

14. Removing dish panels.


Cooby Creek

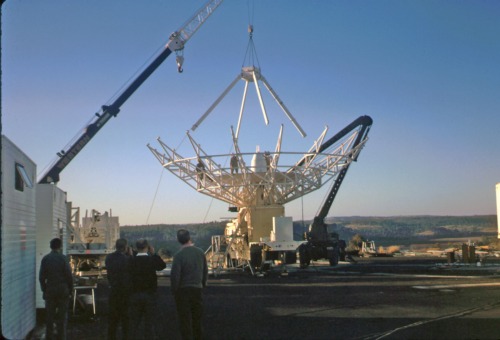

15. Removing Quad legs.


Cooby Creek

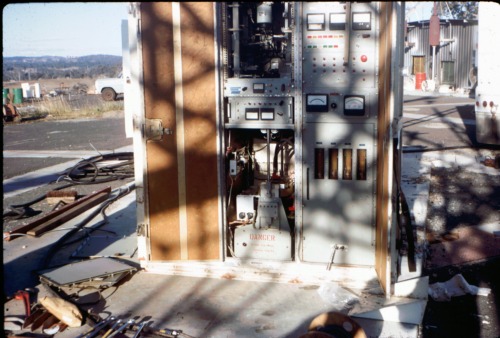

16. 10KW 6GHz FM-SSB Transmitter.


Cooby Creek

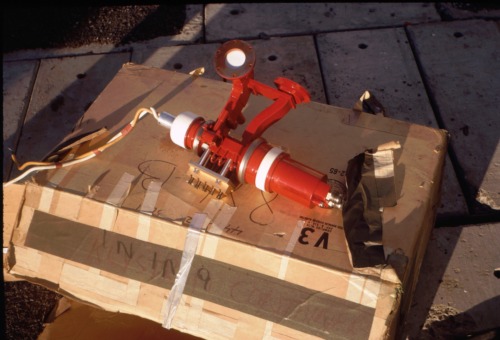

17. 10KW 6GHz water cooled Klystron.


Cooby Creek

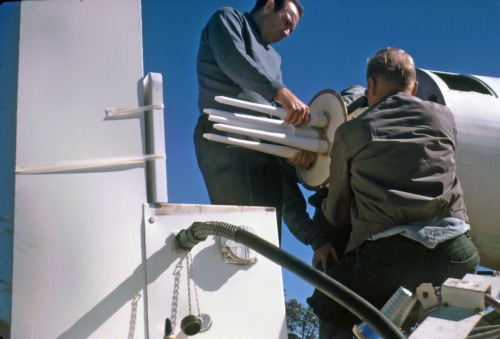

18. Dielectric Tx-Rx feed.


Cooby Creek

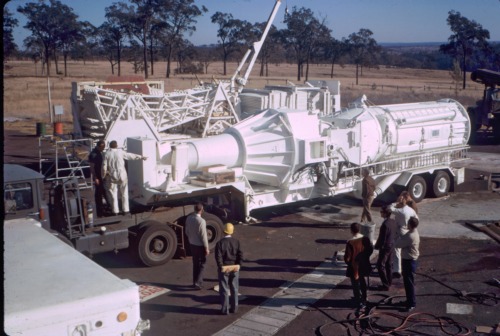

19. Pedestal on trailer ready for transport.


Cooby Creek

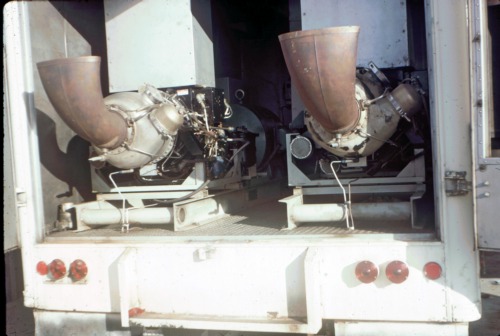

20. Garrett (AiResearch model GTP) 125KVA turbines.
(Thanks to Jack Watson for the info.)




With fond memories of Neil Sandford.
And thanks to Bruce Ekert for delivering the scans.

Images restored and colour-corrected by Colin Mackellar.
