Apollo USB Modes




John Saxon has supplied these scans of USB configurations from a plastic ‘cheat sheet’ of the Goddard Space Flight Center Apollo modes – used at the Ops Console at Honeysuckle.

He says, “The card was produced specially for the J missions.” It is dated May 1971.

For each, click on the image to see the larger version in a new window –

USB modes

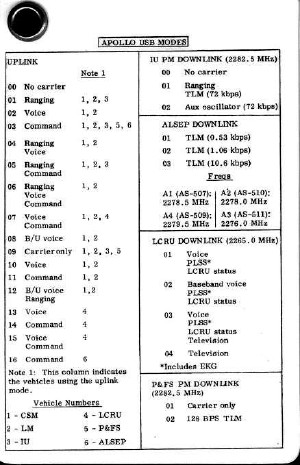

USB modes – part 1


USB modes

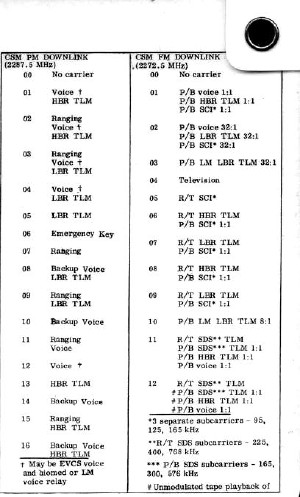

USB modes – part 1a


USB modes

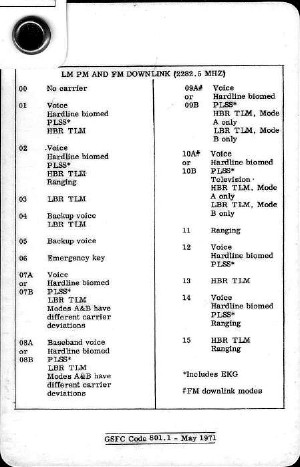

USB modes – part 2




John writes, “This is more or less the info on the GSFC cheat sheets but (in my opinion) a more readable form. The diagrams were drawn by Neil Sandford and posted in the HOD (Honeysuckle Ops Directives).”

USB modes

Uplink and Downlink Signal Spectra


USB modes

Downlink Signal Spectra



During Apollo 15 EVA 3, Neil Sandford took these Polaroid photos of the spectra of various configurations – they give a hint of the complexity of the USB downlink.

Spectra

LM PLSS – Honeysuckle
(click for 512kb version)


Spectra

LCRU Downlink PLSS – Honeysuckle
(click for 692kb version)


Spectra

LCRU Downlink PLSS – incoming from Parkes
(click for 340kb version)
